Lexus IS200/IS300 & Toyota JZX110 Rear Suspension Combo - 15% Off

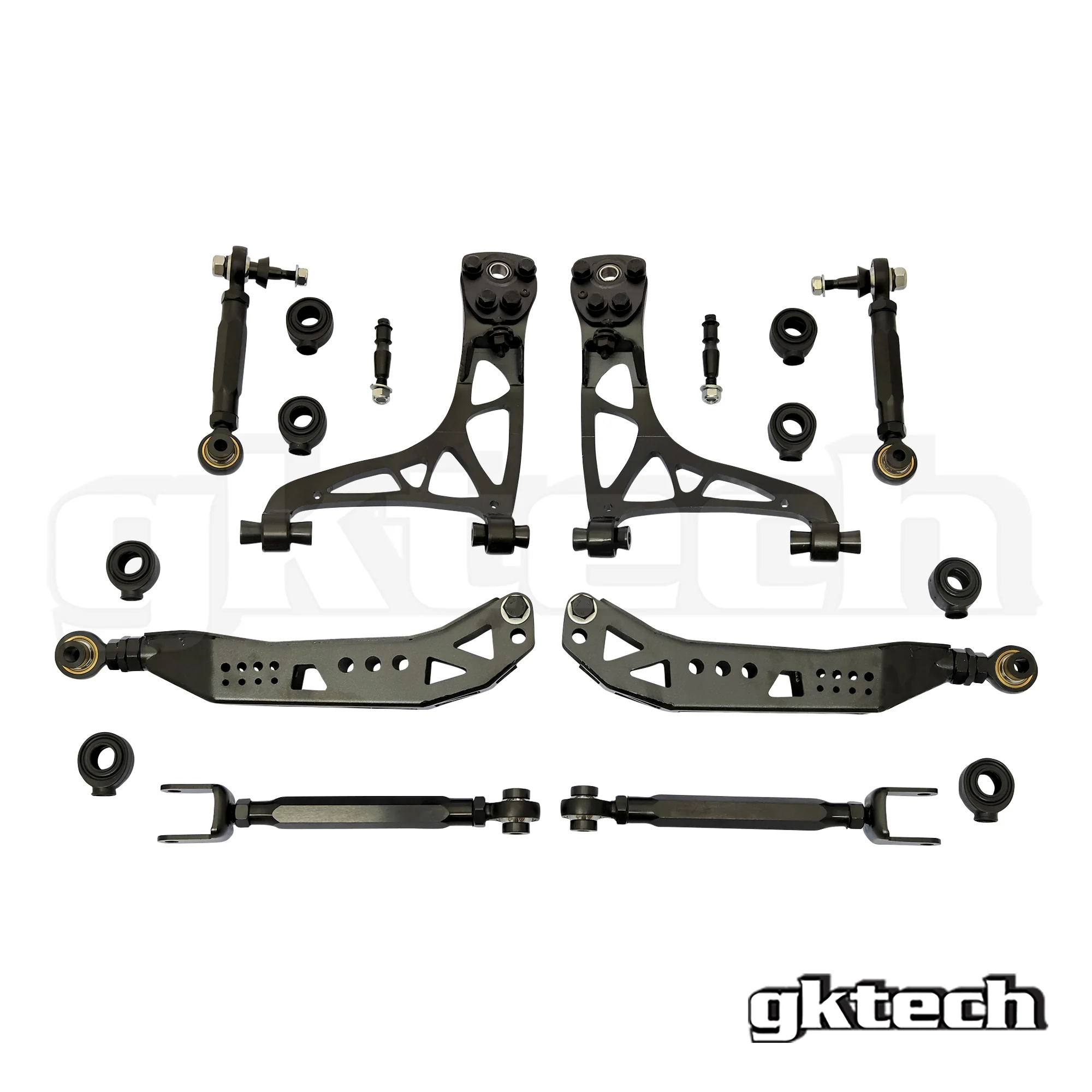

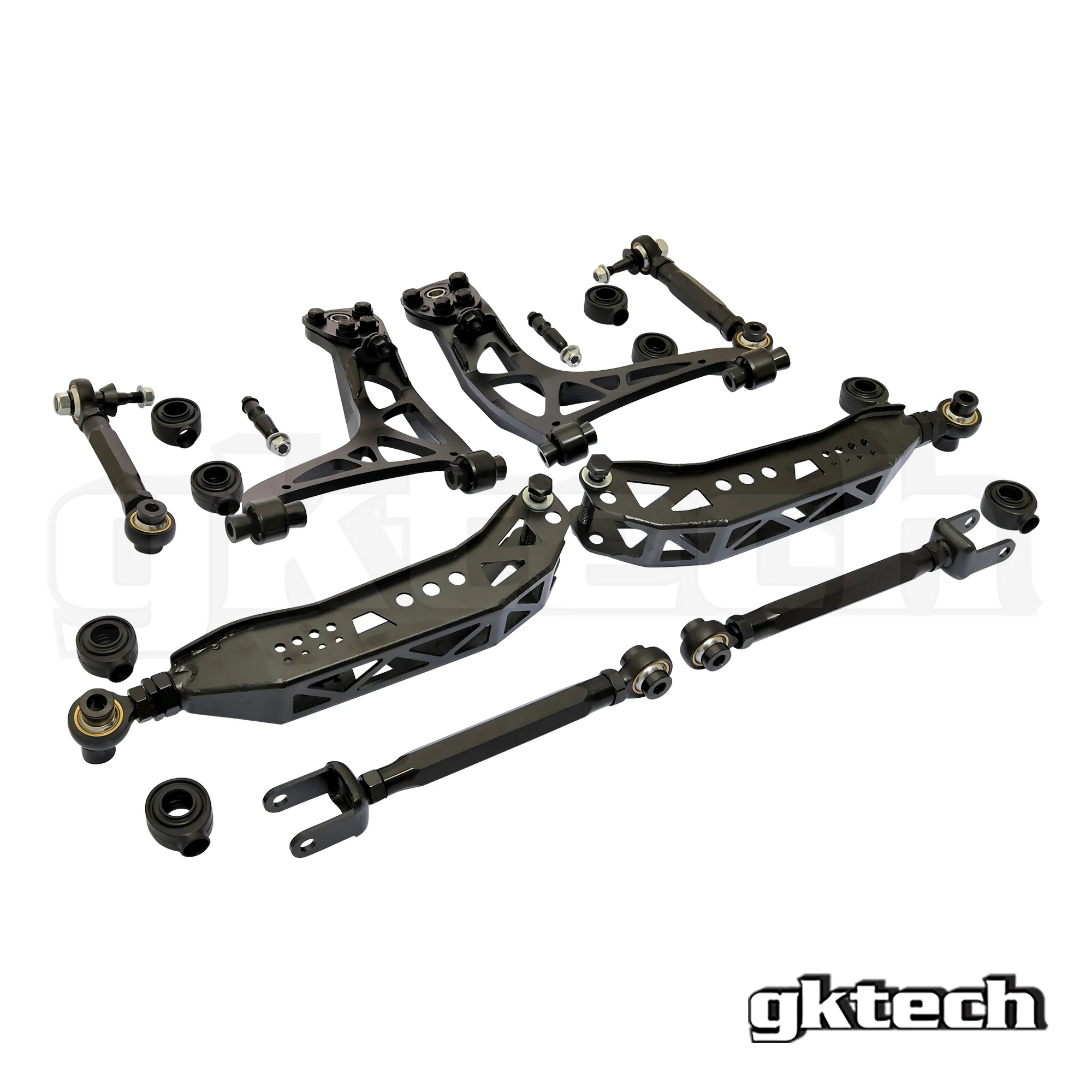

This listing is for the 4 main rear arms being the RLCAs, Toe arms, Traction arms and the RUCAs!
We are offering these as a package deal which comes at an additional 15% off our listed price for the items when sold on their own.
All our arms features high quality 5/8" Teflon lined pillow ball rod ends which eliminate the flex found in factory rubber bushing offering a more direct and predictable feel
The traction arms and toe arms are manufactured from 6061-T6 aluminium with a Hexagonal shape for lightweight and ease of adjustment and the RLCAs are manufactured from 4130 chromoly steel.
CAD designed, FEA tested and TIG welded with also on car adjustment!
REAR LOWER CONTROL ARMS
Rear Lower Control Arms (RLCA's) allow for 50mm of track adjustment, motion ratio adjustment and can be used to lower your car 25mm.
Adjustable rear lower control arms allow adjustment of the rear multi-link suspension. Typically, adjustable LCA's can be adjusted to alter camber however we have incorporated some extra features.
For more information;
IS200 XE10 & Toyota JZX110 Adjustable Rear Lower Control Arms (RLCA)
The GKTECH rear toe arms give you the ability to adjust and tune your vehicle's rear toe.
The lengths on these rear toe arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved with on car adjustment from -32mm from OEM to +32mm from OEM
For more information:
IS200 XE10 & Toyota JZX110 Rear Toe Arms
REAR TRACTION ARMS
Rear traction rods allow adjustment of the rear multi-link suspension. They can be adjusted to eliminate bump steer and alter other rear suspension traction settings to improve suspension response.
The lengths on these arms are fully adjustable and with the right adjustments, you can change the position and pitch of which the suspension rotates on, along with the amount of "anti-squat" of the rear with on car adjustment from -27mm from OEM to +29mm from OEM
For more information
IS200 XE10 Rear & Toyota JZX110 Traction Arms

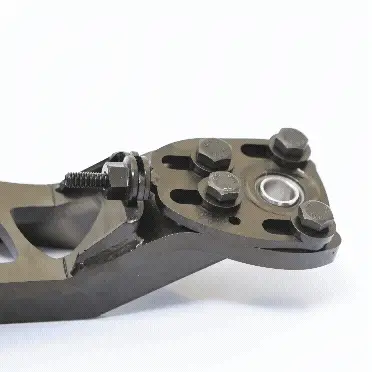

REAR UPPER CAMBER ARMS
When you lower your car negative camber is introduced. This reduces the contact patch of your tyres and thus available traction. Our rear camber arms are a direct replacement of the OEM arm and will correct this issue.
The lengths on these arms are fully adjustable with increased bump travel and clearance over the OEM arm.
The adjustment range is -10mm to +10mm which equates to +/- 2.25 degrees of adjustment
For more information
IS200 XE10 Rear Upper Camber Arms
