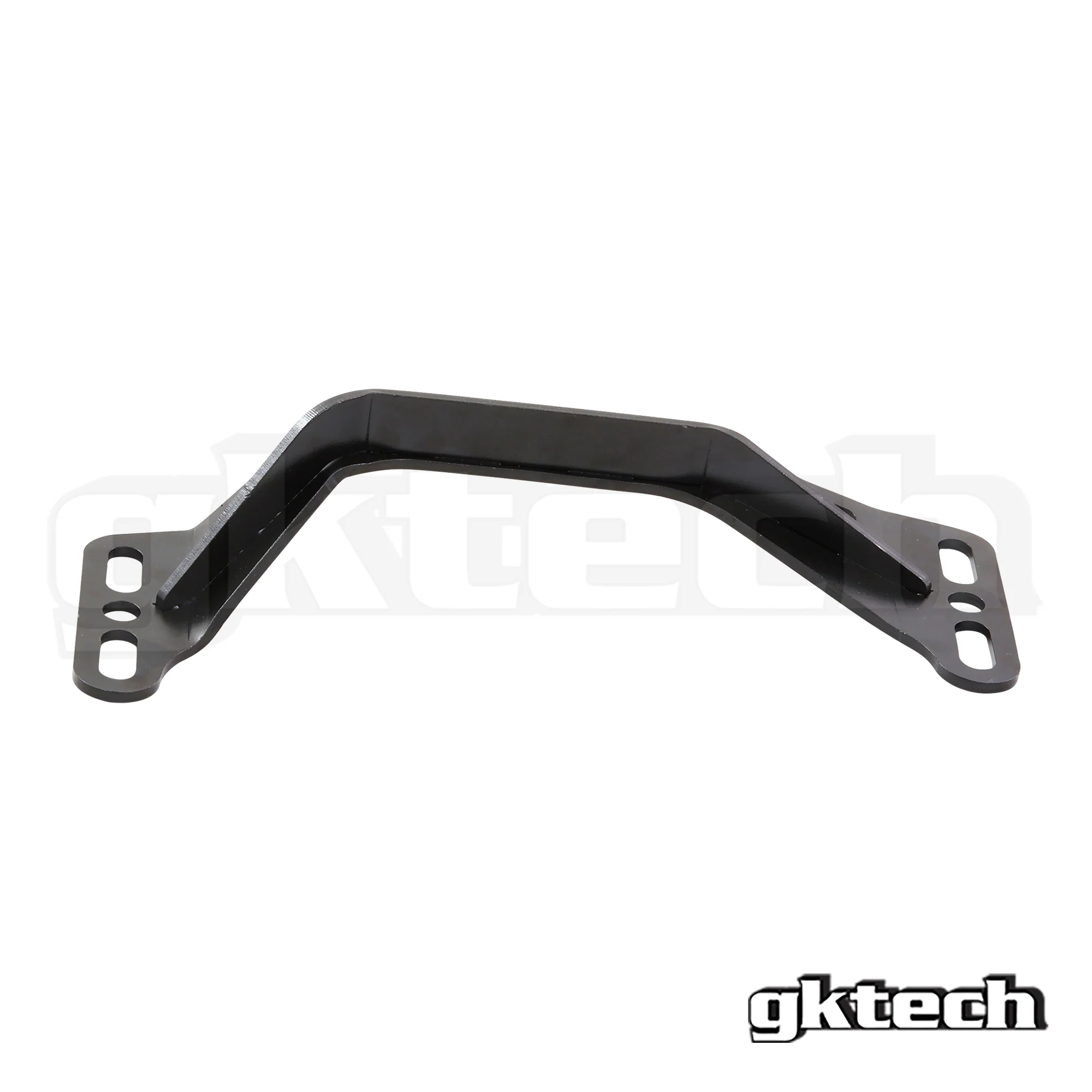

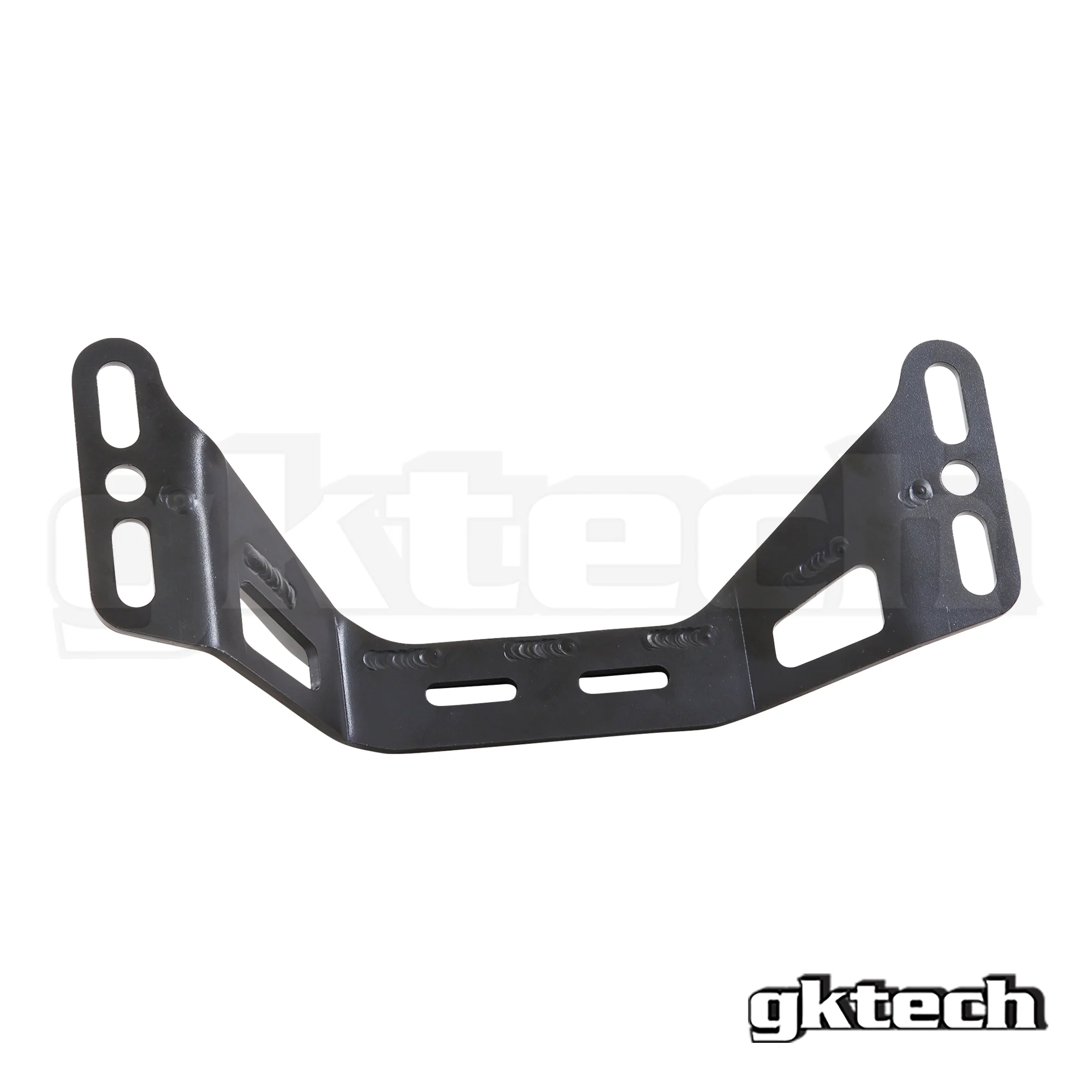

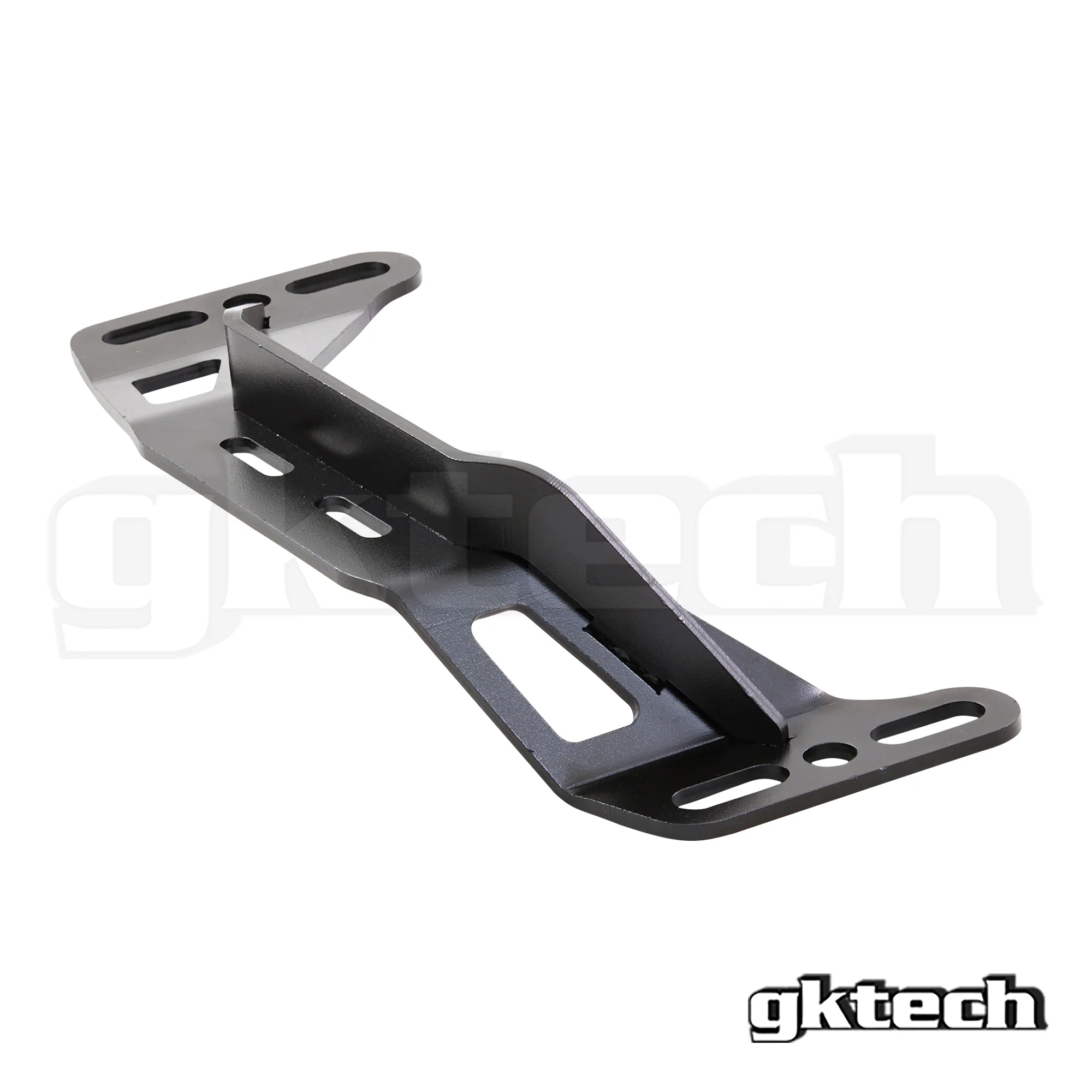

V2 Z33 350z/Z34 370z gearbox cross member for S-Chassis

The V2 GKTECH Z33 350Z/Z34 370z gearbox cross member has been designed as a bolt on solution when fitting these gearboxes to an S chassis when running either an SR20/KA24 motor.

The gearbox cross member has been designed to use an OEM S13/S14 gearbox mount such as our polyurethane/ solid mount that we also make, seen here;

Solid - S13/S14/S15/ R32 GTS-T SKYLINE BILLET ALUMINIUM SOLID GEARBOX MOUNT
Polyurethane - V2 POLYURETHANE GEARBOX MOUNT

- 6mm steel plate, laser cut and press bent
- CAD designed

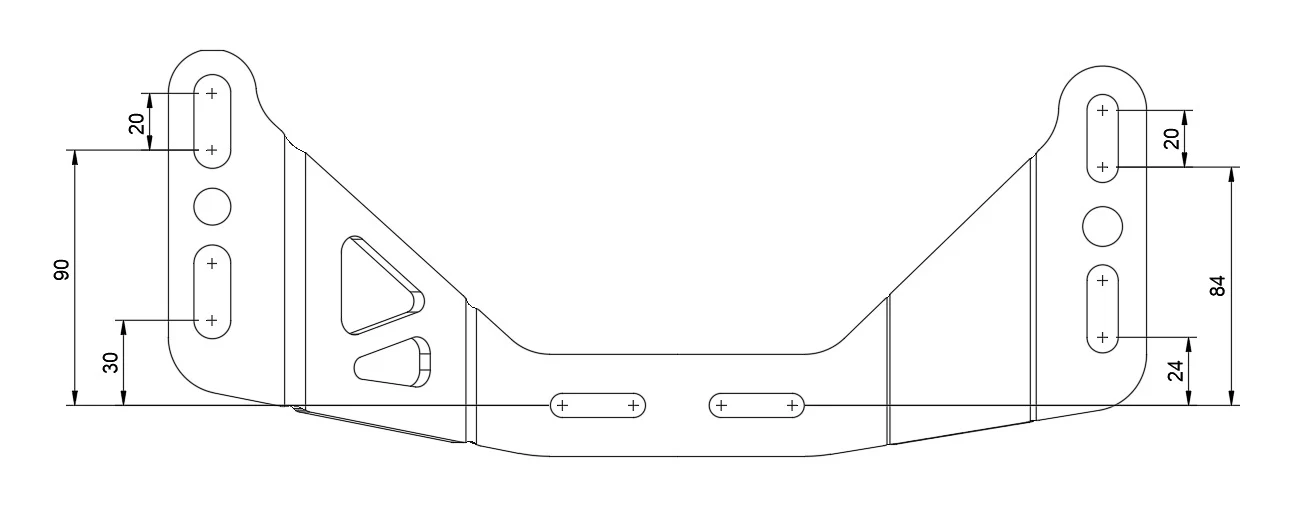

- 20mm of adjustment to suit modified setups
- V2 has significantly more stiffness vs our previous V1 model

NOTE: Fitment is based on running an SR20 or KA24. If you're running an engine that sits further back then the cross member most likely won't work.
