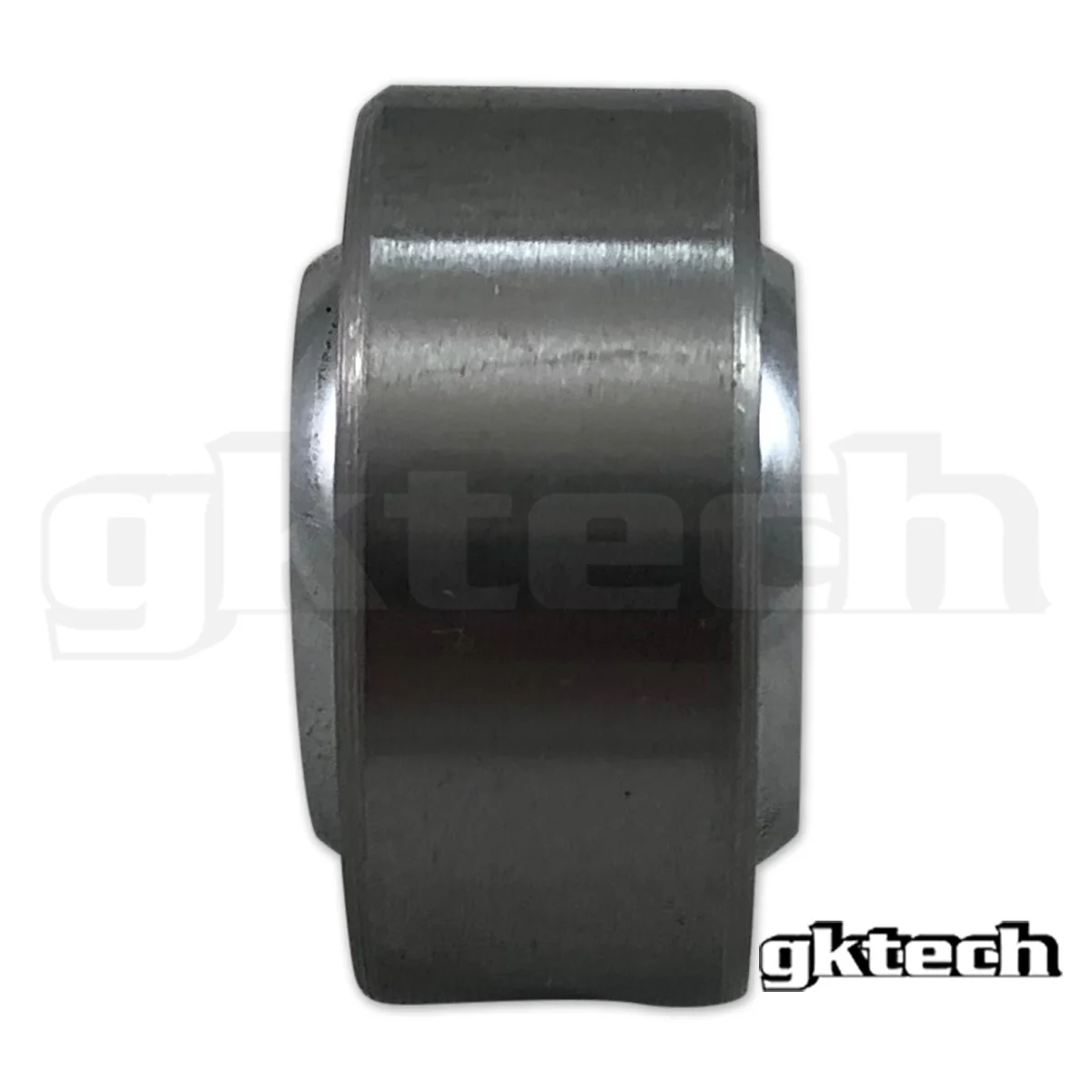

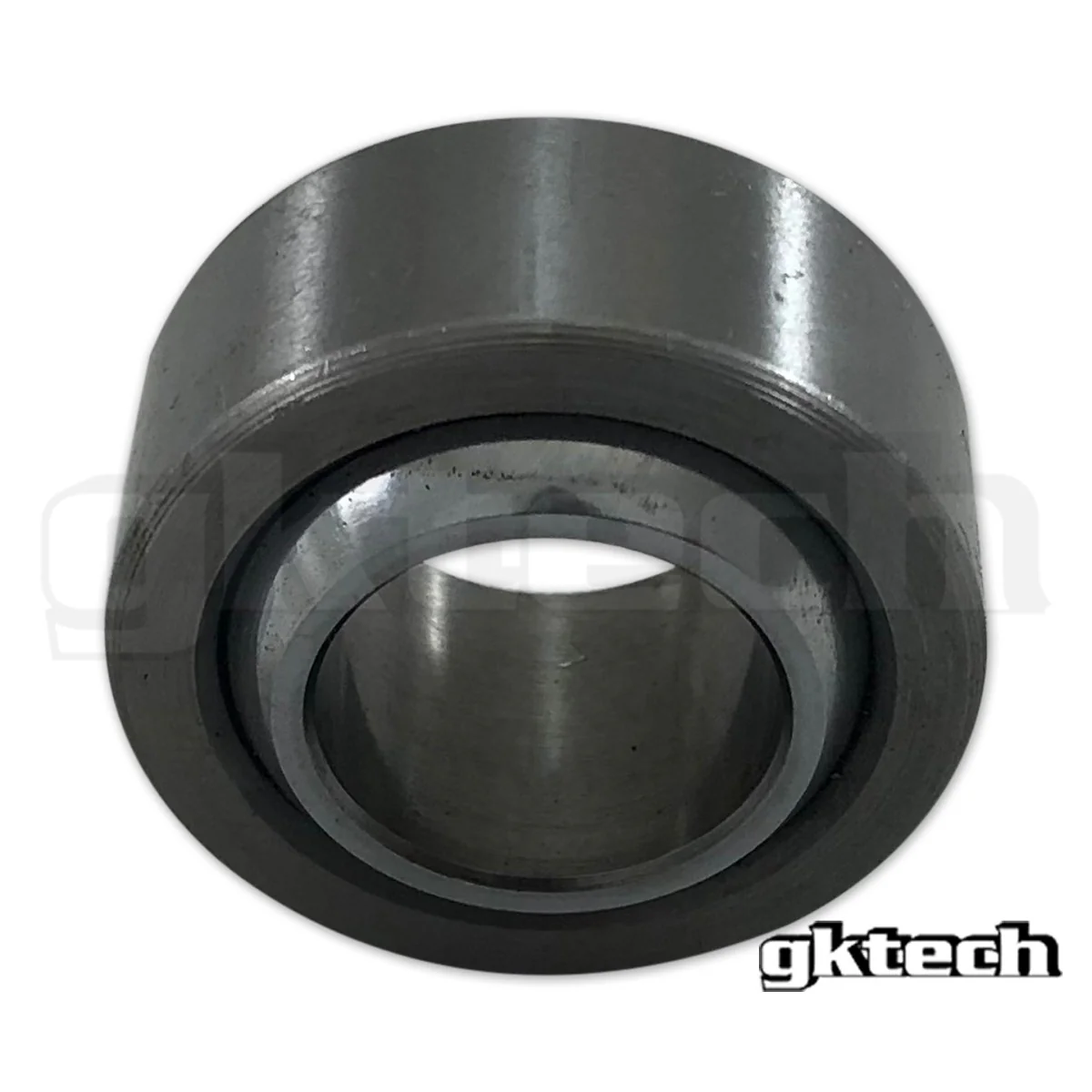

Replacement COM10T bearing
Replacement COM10T bearing Used in the following GKTECH products: 350Z-RKBK R32X-FUCA REAR-KNCK S13X-FLSB S145-FLSB Z32X-FUCA Z33X-FBSH Z33X-FUCA Z33X-RBSH Z33X-RMSB Z33X-SBSH Z33X-UPSP Z34X-FUCA V2 Z33X-FLCA
COM10T
| IMPERIAL | METRIC |
|---|---|
| HOUSING OUTER DIAMTER | HOUSING OUTER DIAMTER |
| 1.1875 in | 30.1625 mm |
| HOUSING WIDTH | HOUSING WIDTH |
| 0.5000 in | 12.7000 mm |
| BALL WIDTH | BALL WIDTH |
| 0.6030 in | 15.3162 mm |
| BALL BORE SIZE | BALL BORE SIZE |
| 0.6250 in | 15.8750 mm |
| BEARING MISALIGNMENT ANGLE | BEARING MISALIGNMENT ANGLE |
| 8.5 degrees | 8.5 degrees |
| ULT. Static Radial Load (lbs) | ULT. Static Radial Load (kg) |
| 31,920 lbs | 14,479 kg |
| BEARING MATERIAL | BEARING MATERIAL |
| STEEL | STEEL |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
$4.56
Original: $13.04
-65%Replacement COM10T bearing—
$13.04
$4.56Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Replacement COM10T bearing Used in the following GKTECH products: 350Z-RKBK R32X-FUCA REAR-KNCK S13X-FLSB S145-FLSB Z32X-FUCA Z33X-FBSH Z33X-FUCA Z33X-RBSH Z33X-RMSB Z33X-SBSH Z33X-UPSP Z34X-FUCA V2 Z33X-FLCA
COM10T
| IMPERIAL | METRIC |
|---|---|
| HOUSING OUTER DIAMTER | HOUSING OUTER DIAMTER |
| 1.1875 in | 30.1625 mm |
| HOUSING WIDTH | HOUSING WIDTH |
| 0.5000 in | 12.7000 mm |
| BALL WIDTH | BALL WIDTH |
| 0.6030 in | 15.3162 mm |
| BALL BORE SIZE | BALL BORE SIZE |
| 0.6250 in | 15.8750 mm |
| BEARING MISALIGNMENT ANGLE | BEARING MISALIGNMENT ANGLE |
| 8.5 degrees | 8.5 degrees |
| ULT. Static Radial Load (lbs) | ULT. Static Radial Load (kg) |
| 31,920 lbs | 14,479 kg |
| BEARING MATERIAL | BEARING MATERIAL |
| STEEL | STEEL |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
